The JY-18 medical trolley is custom-designed for endoscopic imaging systems. Its robust structure and scientifically laid-out design make it suitable for various clinical settings, including hospital endoscopy centers, gastroenterology departments, and ENT departments. With a maximum load capacity of 200KG, it meets the needs for centralized placement of multiple brands and models of medical equipment.
Pull-out keyboard tray: The ergonomic drawer design makes storing and using the keyboard smoother and saves space.
Endoscope light guide bracket: facilitates the hanging and placement of light guide indicators, protects the equipment, and maintains orderly operation.
Adjustable monitor arm: supports 24-inch and 27-inch medical monitors; angle and height can be adjusted as needed; single screen load capacity is 7-12 kg.
Endoscope handle holder: can suspend 1-2 endoscope handles at the same time for easy access by doctors.
High-strength shelving design: Each shelf can bear up to 50 kg, and multiple devices such as the host, light source, and processor can be stacked.
Reinforced base casters: 130mm enlarged casters ensure quiet and smooth operation, are wear-resistant and stable, and allow for safer 360° flexible movement.
Endoscopic examination, medical office building, surgical operating room, laboratory, operating room, neurology department
请参阅以下配置内容。Load capacity
Total Load Capacity: 150kg/330lb
Shelf Load Capacity (Surface Load): 30kg/60lb
Dimensions - Basic FrameWidth: 620mm
Depth: 730mm
Total Height: 1160mm (without casters) / 1750mm (with casters)
Dimensions - ShelvesWidth: 475mm / 440mm
Depth: 520mm / 500mm
ElectrificationIsolation Transformer: Yes
Central Switch: Yes
Power Strip: Yes

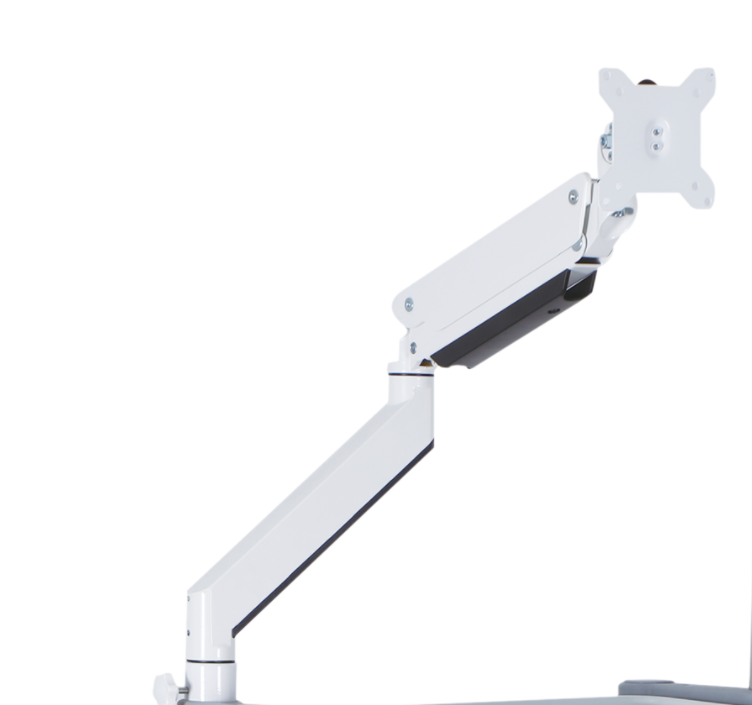

Monitor arm
Supports 24″ and 27″ medical displays, with adjustable angle and height; single screen can support a weight of 7–12KG.

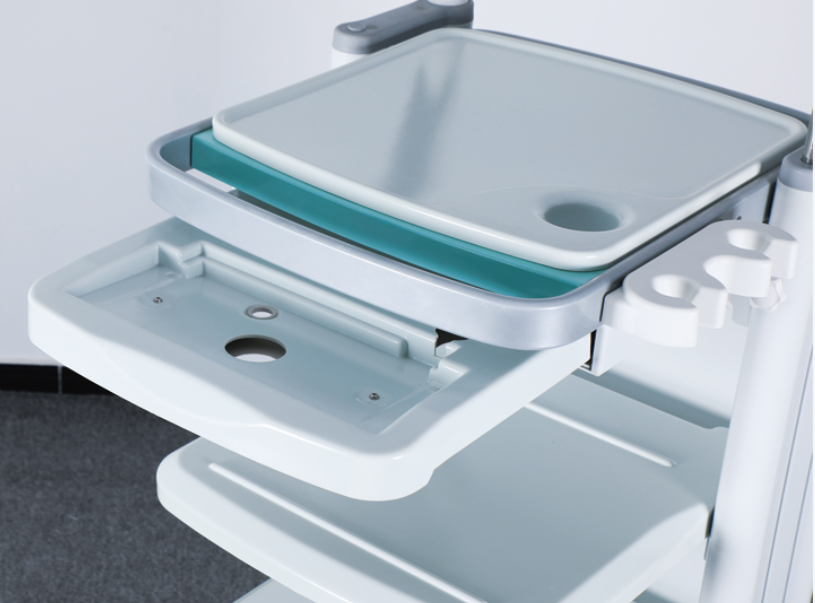

Keyboard drawer
The ergonomic drawer design makes keyboard storage and use smoother and saves space.
Endoscopic light guide
It facilitates the hanging and placement of light guide indicators, protecting equipment and maintaining orderly operation.

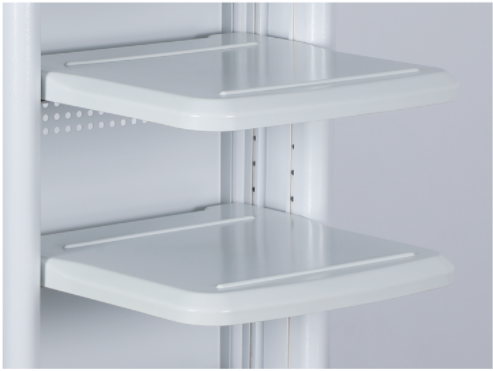

laminate
Each layer can bear a load of up to 30KG, which can accommodate multiple devices such as main unit, light source, and processor.

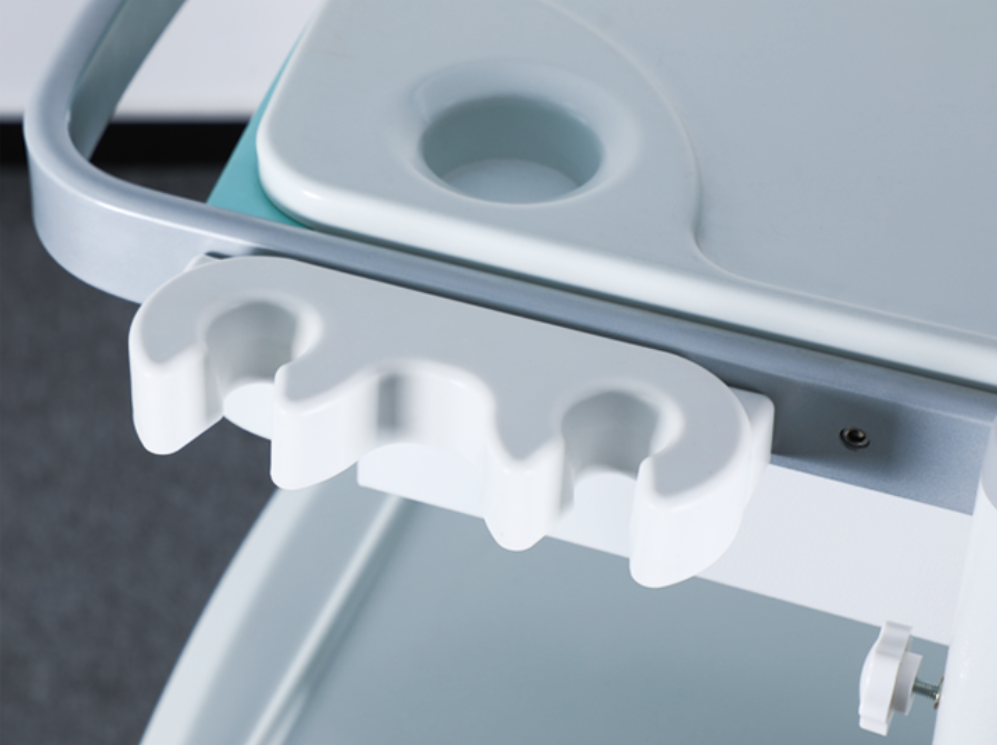

Mirror bracket
It can suspend 1–2 endoscope handles at the same time, making it more convenient for doctors to pick up and put down the endoscope.
Silent casters
130mm enlarged casters provide quiet, smooth, wear-resistant, and stable operation, allowing for safer 360° flexible movement.
产品按照最高的国际标准和规范研发。
质量认证符合 DIN EN ISO 13485 和 IEC 60601-1 标准。
符合 MDR 2017/745 法规。FDA
注册号 (3007713438)。
经过全面测试，确保日常使用安全。
符合德国医院卫生协会 (DGKH) 制定的极高卫生标准。
Provide you with customized services
Leveraging our customized services, we quickly create exclusive solutions—shortening time-to-market, improving resource utilization efficiency, and making your equipment more competitive.
- Appearance customization
- Various colors available
- Packaging
